Galvanized Steel Woven Wire Field Fence Fixed Knot and Hinge Joint Structure with High Tensile Strength

Fixed knot and hinge joint woven wire fence is well known as field fence, deer fence, sheep and goat fence, cattle fence.

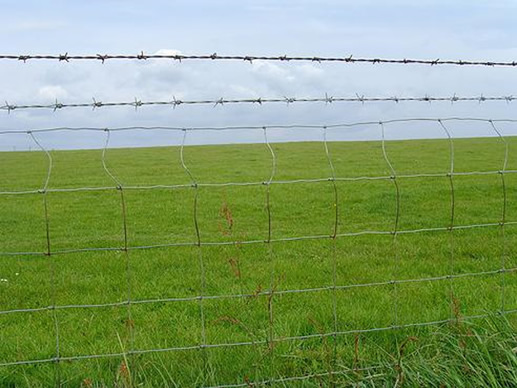

Woven wire field fences are very effective when used with a barb wire or electric strand at the top or inside the enclosure near the middle of the woven wire.  The advantage of knot wire fence is its effectiveness as a visual barrier for the animals.  Woven wire fabric is best used as a perimeter fence.

Specification:
Material:High-strength galvanized iron wire; High-strength zinc plated steel
Mesh: 15-14-13-11-10-8-6(longitude)cm; 15-18-20-40-50-60-65(woof)cm
Height:0.7m, 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m, 1.6m, 1.8m, 2.0m, 2.4m
Length:115feet (50m), 330feet (100m)
Top and bottom wire diameter: 1.9 – 3.5mm
In wire diameter: 1.6 – 2.8mm
Volume diameter: 270mm (50m/roll) 350mm (100m/roll).

The weaving process of metal wire makes the fabrics more flexible and universally used. Without punching, expanding or stretching operations, woven wire has less stress-induced weaknesses. Woven metal can be easily fabricated into different shapes and designs That is also one important reason that woven wire fabrics find popular uses in fences.

The opening of field wire fence can be square and rectangular.

Woven wire fences mainly serve in various commercial and agriculture uses.

Woven is the most popular wire mesh. It is available in a wide range of meshes, weaves and opening sizes.

Woven wire fences are very effective when used with a barb wire or electric strand at the top or inside the enclosure near the middle of the woven wire.  The advantage of a woven wire fence is its effectiveness as a visual barrier for the animals.  Woven wire is best used as a perimeter fence.

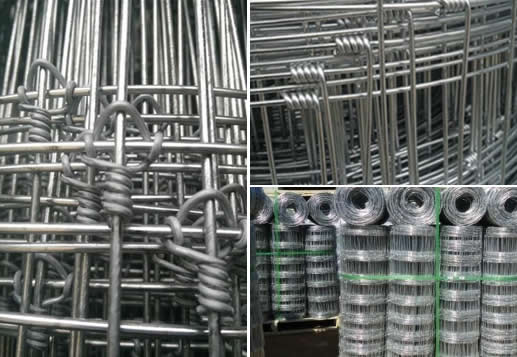

Galvanised Fixed Knot Woven Wire Fence

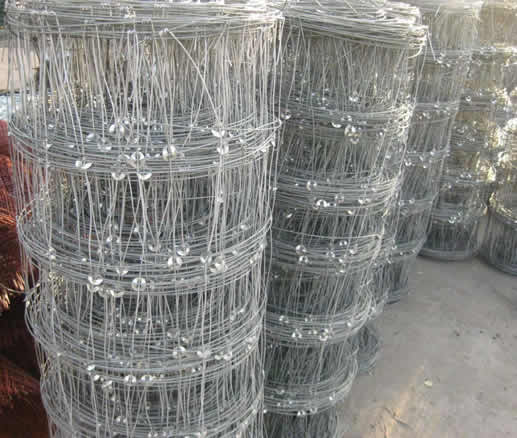

Galvanized High Tensile Woven Wire Fixed Knot Fencing

Hot dipped galvanized Hinge Joint Fencing

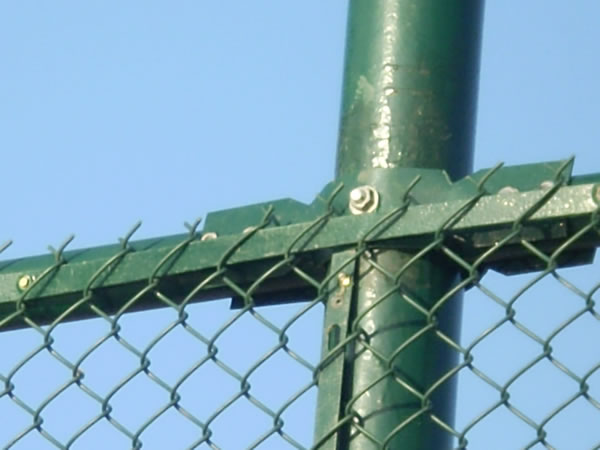

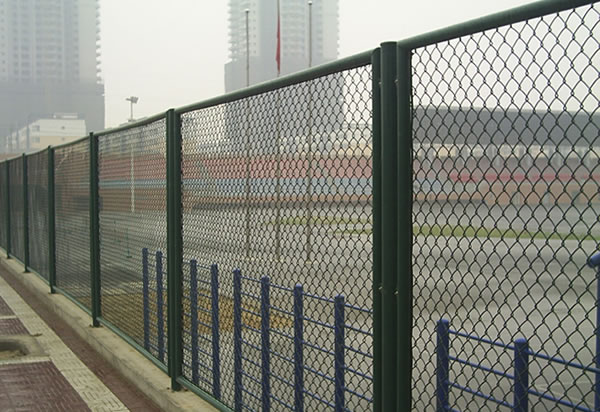

Also supply chain link fence and other woven wire mesh fences for field fencing uses:
